Point Symbols in HDMapper™
Q: How can I change the symbol used for my transmitter site or pin locations in HDMapper?
A: With TAP6.0.2210 or later and a Maintenance Subscription date of January 31, 2008, or later, you can edit the default symbol to use for several HDMapper marking functions.
With TAP6.0.2331 or later and a Maintenance Subscription date of January 31, 2010, or later, you can specify the size of text to be automatically added with Fixed Facility or coverage transmitter site locations.
Note that all values in this example are for demonstration purposes only. You should determine appropriate settings for your application.

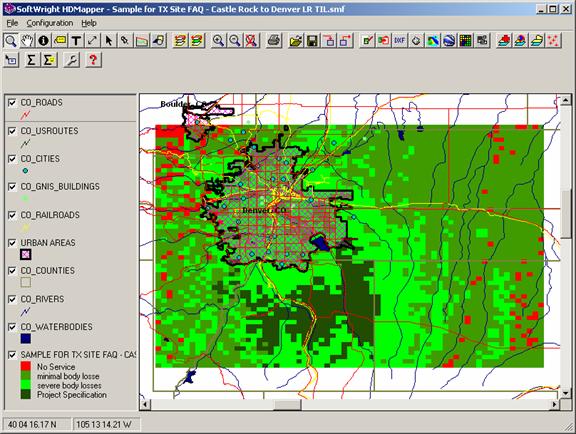

For example, suppose you have a coverage study displayed in HDMapper:
Changing the symbol for Coverage Transmitter site
Changing the symbol for Map Pin locations
Changing the symbol for Fixed Facility locations

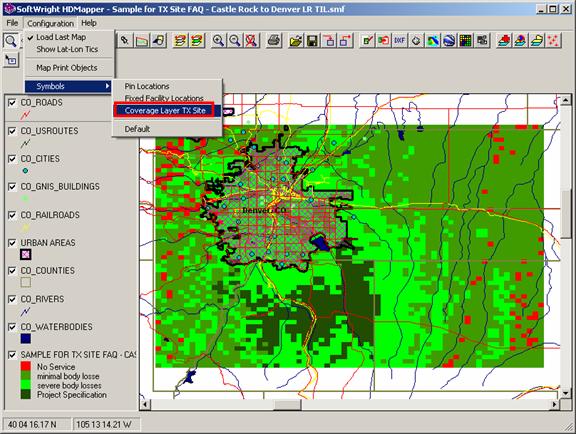

On the Configuration menu near the top of the form, select “Symbols” and then “Coverage Layer TX Site”
You will be prompted to select the symbol, color, and size for this function, as well as the text size::
The text size and alignment options are described in Text in HDMapper.

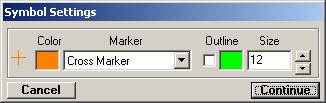

Note that with versions of TAP earlier than TAP6.0.2331 or a Maintenance Subscription that expired prior to January 31, 2010, only the symbol form will be displayed:
When you have selected the properties you want to use, click the Continue button.

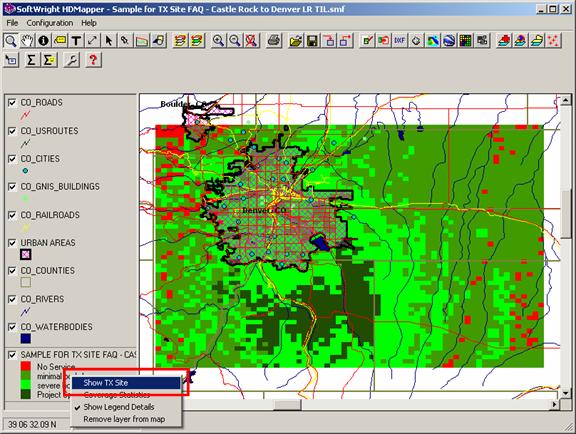

Use the Show TX Site function for a TAP coverage layer:
The site location will be shown using the selected symbol properties:
Note that this function does not change the properties of existing symbols on the map. To change symbols already added to the map, use the Symbol Editing function.

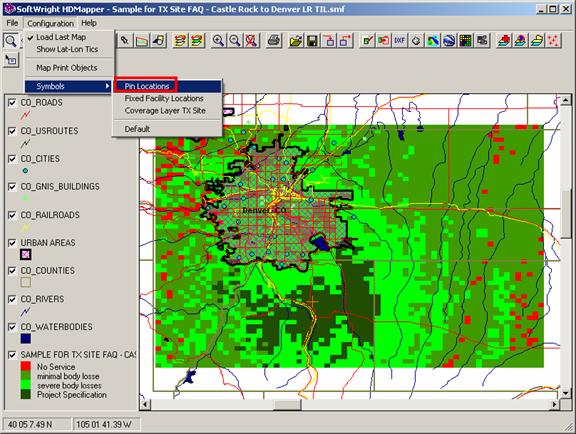

On the Configuration menu near the top of the form, select “Symbols” and then “Pin Locations”

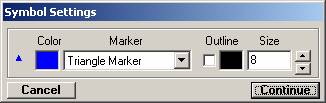

You will be prompted to select the symbol, color, and size for this function:
When you have selected the properties you want to use, click the Continue button.

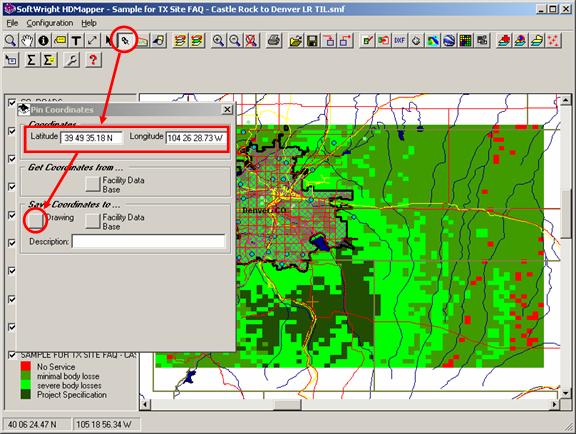

Use the Map Pin function to add a location to the map:
The site location will be shown using the selected symbol properties:
Note that this function does not change the properties of existing symbols on the map. To change symbols already added to the map, use the Symbol Editing function.

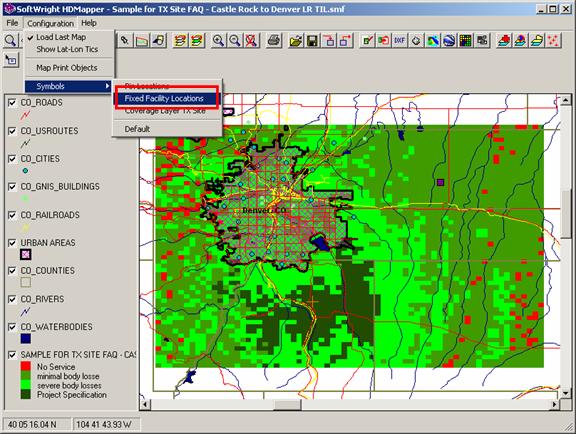

On the Configuration menu near the top of the form, select “Symbols” and then “Fixed Facility Locations”

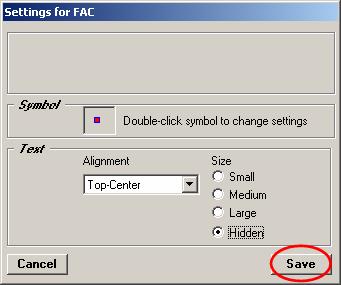

You will be prompted to select the symbol, color, and size for this function, as well as the text size::
The text size and alignment options are described in Text in HDMapper.

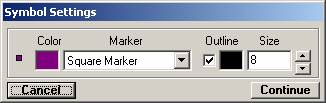

Note that with versions of TAP earlier than TAP6.0.2331 or a Maintenance Subscription that expired prior to January 31, 2010, only the symbol form will be displayed:
When you have selected the properties you want to use, click the Continue button.

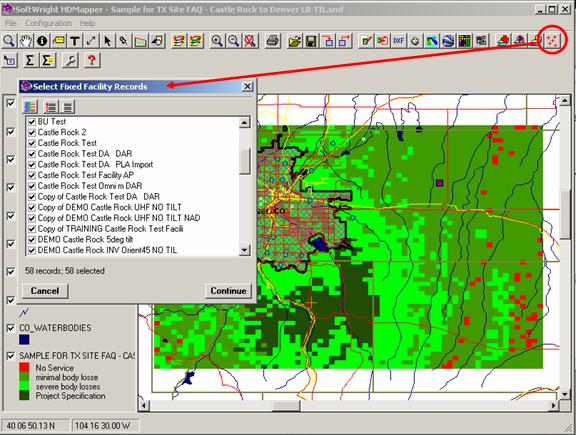

Use the Fixed Facility Location function to add a location(s) to the map:
Each Fixed Facility site location will be shown using the selected symbol properties:
Note that this function does not change the properties of existing symbols on the map. To change symbols already added to the map, use the Symbol Editing function.
 |
