Q: The legend shown on my coverage plot shows the field strength levels in dBu. How can I show the values in dBm?
A: TAP computes coverage as values of field strength (in dBu, or dB above one microvolt per meter). This enables you to plot the coverage using different colors or fill patterns to indicate different levels of field strength. The levels plotted are typically used to show the coverage areas for different receiver configuration(s).
The receiver configurations include the antenna gain, as well as losses (transmission line losses, body losses, building losses, etc.) associated with particular hardware and conditions. Using TAP to compute the field makes the coverage calculation independent of these variables. Therefore you can plot any number of different receiver configurations without having to recompute the field strength coverage. (The main exception to this approach is the mobile receiver antenna height. If the antenna height changes, this changes the geometry, path clearance, etc., of the calculations and a new field strength coverage study must be computed using the new antenna height.)

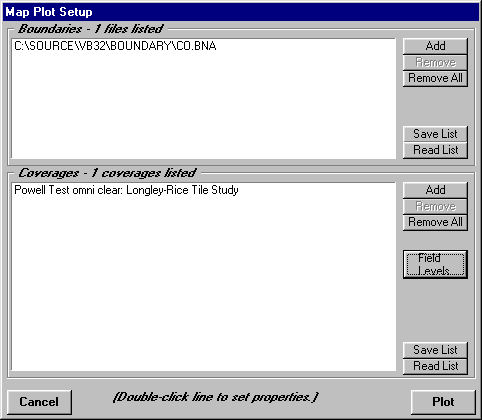

You can set the level values to plot from the "Field Levels" button on the Map Plot Setup form:

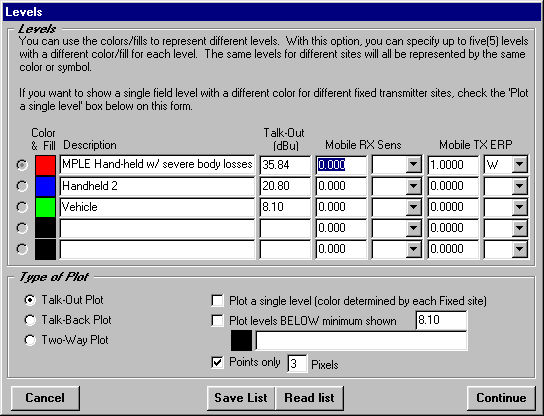

When you set the level values, you have the option to also set the "Mobile RX Sensitivity" value on the form:
If you leave the sensitivity value blank, only the field strength levels in dBu will be included on the drawing legend:
However, you can also specify a receiver sensitivity value, either by entering the value directly, or by double-clicking to look up a value from the Mobile Facility data base:

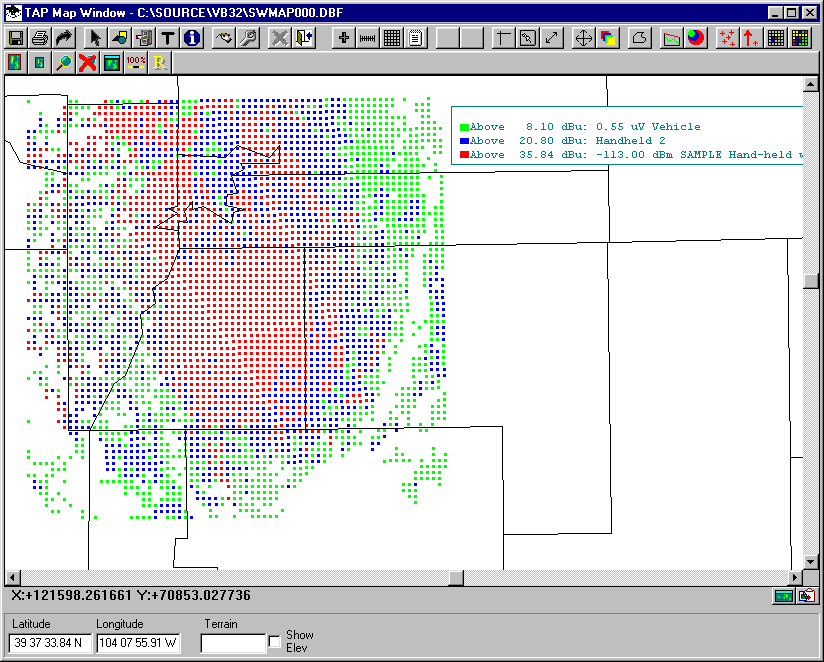

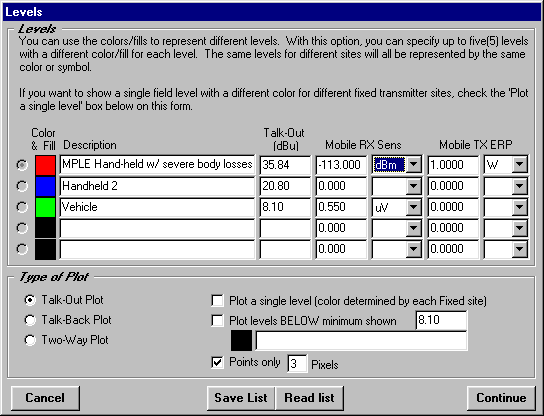

When the sensitivity value(s) are specified, the legend will include those values in whichever units you select:
