Fixed Facility Antenna and Line Import

Q: I am able to use the TAP Import function to bring my Excel spreadsheet information into the TAP Fixed Facility database, but I want to also include the antenna and transmission line information. How do I do that?

A: Antenna and transmission line information is stored in the TAP library files (dBase format database .DBF) files. The Fixed Facility database editor and lookup functions provide the ability to lookup an antenna or transmission line to include in the facility information.

The Fixed Facility database saves the key or "ID" information for the antenna or line in the library file. If you want to include this in an Import process, you will need to import the library ID information as described below.

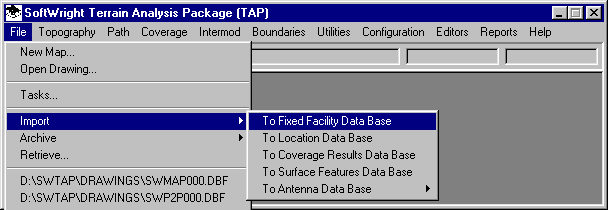

The Import function is found under the File menu in TAP (this is similar to the import function for TAP Intermod studies):

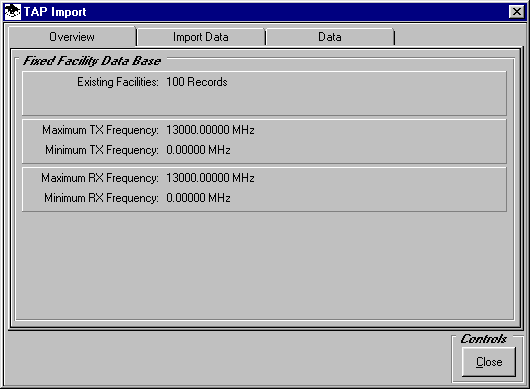

The Import form is displayed:

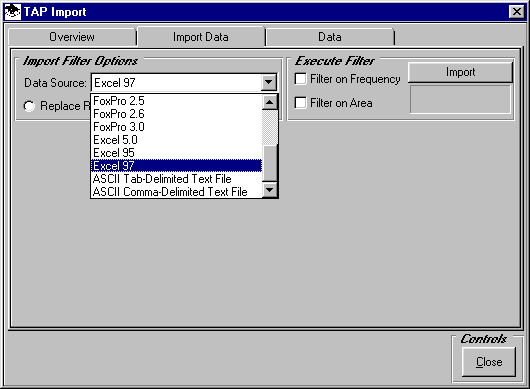

Click the Import Data tab, and use the pulldown list to select the type of file you want to import, such as Excel:

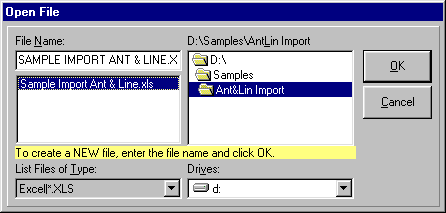

You will be prompted for the file you want to import:

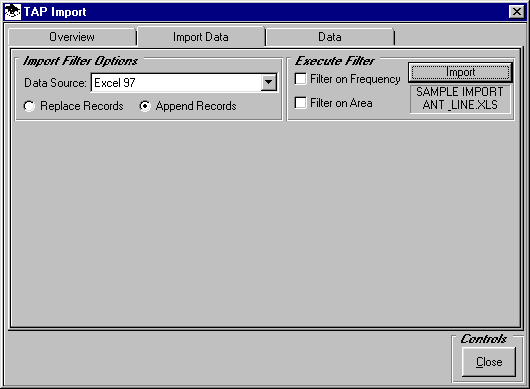

After you select the file, click the Import button:

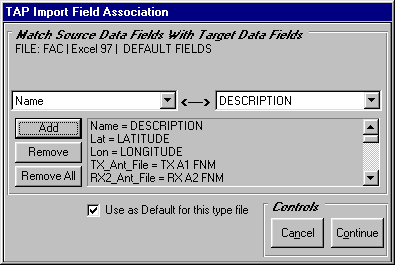

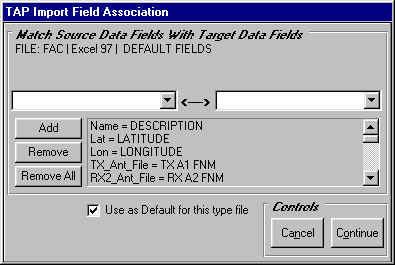

The Field Association form will be displayed:

The data in the two files (the Excel file you want to import, and the TAP Fixed Facility database) is organized in columns, often called "fields". The Field Association form is the mechanism you can use to specify the relationship between the two files.

As an example, suppose you have an Excel spreadsheet with on column called "Name" and you want this information to be imported in to the TAP Fixed Facility "Description" field.

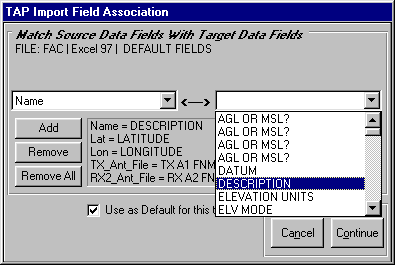

On the Field Association form, in the left pulldown list (which contains all the fields in the file to be imported), find the "Name" field. Then in the right column (the TAP Fixed Facility database fields), find the "Description" field.

When you have the two fields you want to associate selected in the two lists, click the Add button.

(The TAP Fixed Facility database fields related to antenna and line imports are listed at the end of this document.)

When you have made all of the associations you want for this import process, click the Continue button.

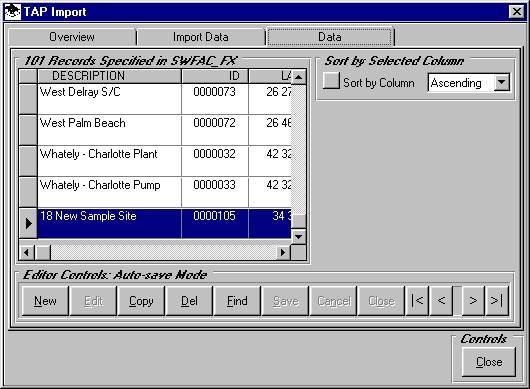

The file will be imported into the TAP Fixed Facility database. You can view the results on the Data tab:

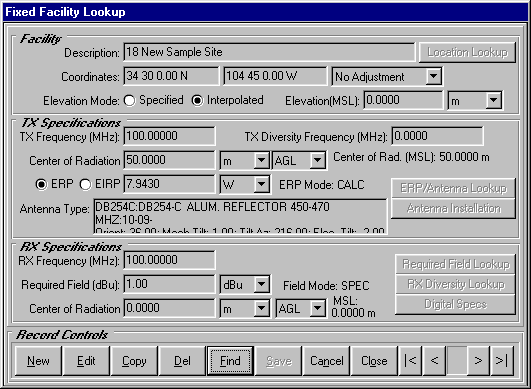

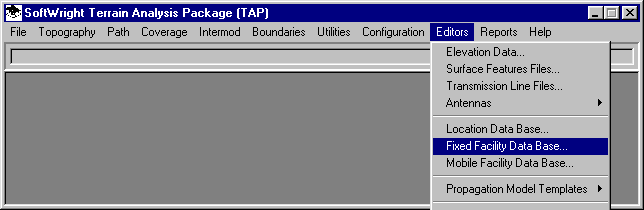

You may want to inspect the imported values in the more familiar context of the TAP Fixed Facility editor. Open the editor from the TAP Editors menu:

Find the record you want, and you will see the information from the original file is now in the Fixed Facility database and can be used for facility lookups, path profiles, coverage studies, or any of the other uses of the Fixed Facility database in TAP.

The specific TAP Fixed Facility fields related to antenna and line imports are shown below.

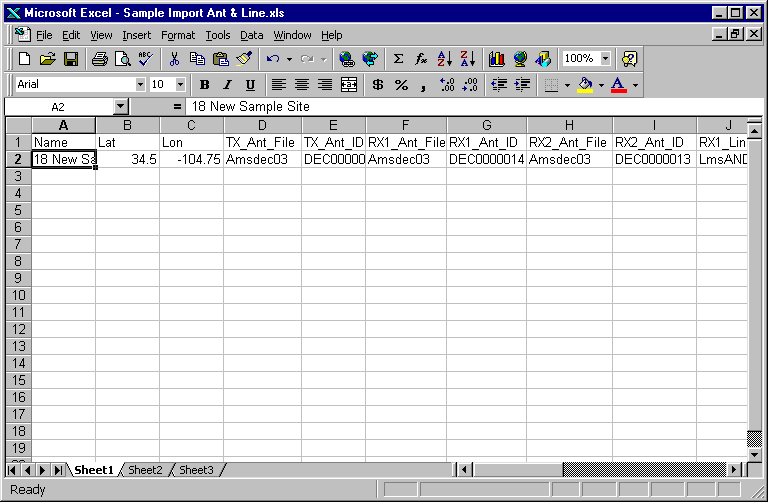

For example, suppose you have an Excel spreadsheet with the antenna information used in this illustration.

Each entry for an antenna or line ID actually requires two fields of information:

  1. The file name of the library file. The name should be the eight-character name without the .DBF file extent, such as the antenna library AMSDEC03
  2. The ID for the antenna or line in the file.

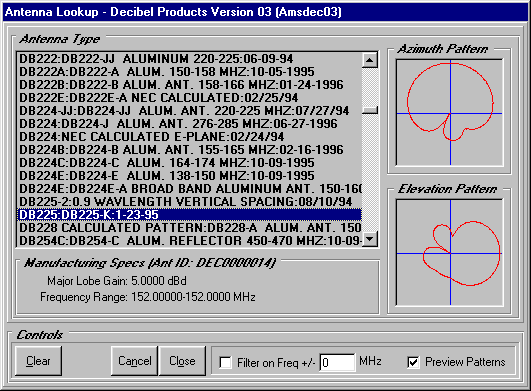

In TAP 4.4.764 and later, this information is displayed on the Antenna and Line lookup forms, as shown below:

The file name is shown in parentheses in the form title bar at the top. The Antenna ID is shown in parentheses below the list of antennas.

If the antenna(s) you want to associate with the imported facilities is already in the TAP antenna library, you can use the antenna lookup function from (for example) the Editors menu under Antennas, Quick Plot to find the antenna and make note of the file and ID to include in the external file to import.

If you create a new antenna in the library (manually with the Antenna editor, or importing a manufacturer’s file), you can use the same process after the antenna entry has been created in the library so you will know the ID.

The following table lists the antenna and line related fields that you would need to associate with the external database fields. The names shown for the external database are for this sample file only.

Data Description

Sample External Field Name

TAP Fixed Facility Field Name
Site
Site Description or Name Name DESCRIPTION
Site Latitude Lat LATITUDE
Site Longitude Lon LONGITUDE
Transmitter
TAP Antenna Library file name for Transmitter antenna (eight character name only, no .DBF extent) TX_Ant_File TX A1 FNM
ID of Transmitter antenna in the library file TX_Ant_ID TX ANT1TYPE ID
TAP Antenna Library file name for Line 1 on Transmitter antenna (eight character name only, no .DBF extent) TX_Line1_File TX L1 FNM
ID of Transmitter Line 1 in the library file TX_Line1_ID TX LINE1TYPE ID
TAP Antenna Library file name for Line 2 on Transmitter antenna (eight character name only, no .DBF extent) TX_Line2_File TX L2 FNM
ID of Transmitter Line 2 in the library file TX_Line2_ID TX LINE2TYPE ID
Orientation of Transmitter antenna installation relative to the pattern in the library file TX_Ant_Orient TX ANT1 ORIENT
Electrical beam tilt of the Transmitter antenna (negative values for below the horizon) relative to the pattern in the library file TX_Ant_Tilt_E TX ANT1ELECTILT
Mechanical beam tilt of the Transmitter antenna (negative values for below the horizon) TX_Ant_Tilt_M TX ANT MECHTILT
Azimuth in which the antenna is mechanically tilted TX_Ant_Tilt_M_Az TX ANT1MECH DIR
Primary Receiver
TAP Antenna Library file name for Primary Receiver (RX1) antenna (eight character name only, no .DBF extent) RX1_Ant_File RX A1 FNM
ID of Primary Receiver (RX1) antenna in the library file RX1_Ant_ID RX ANT1 TYPE ID
TAP Antenna Library file name for Line 1 on Primary Receiver (RX1) antenna (eight character name only, no .DBF extent) RX1_Line1_File RX A1 L1 FNM
ID of Line 1 on the Primary Receiver (RX1) antenna in the library file RX1_Line1_ID RX ANT1LINE1TID
TAP Antenna Library file name for Line 2 on Primary Receiver (RX1) antenna (eight character name only, no .DBF extent) RX1_Line2_File RX A1 L2 FNM
ID of Line 2 on the Primary Receiver (RX1) antenna in the library file RX1_Line2_ID RX ANT1LINE2TID
Diversity Receiver
TAP Antenna Library file name for Diversity Receiver (RX2) antenna (eight character name only, no .DBF extent) RX2_Ant_File RX A2 FNM
ID of Diversity Receiver (RX2) antenna in the library file RX2_Ant_ID RX ANT2 TYPE ID
TAP Antenna Library file name for Line 1 on Diversity Receiver (RX2) antenna (eight character name only, no .DBF extent) RX2_Line1_File RX A2 L1 FNM
ID of Line 1 on the Diversity Receiver (RX2) antenna in the library file RX2_Line1_ID RX ANT2LINE1TID
TAP Antenna Library file name for Line 2 on Diversity Receiver (RX2) antenna (eight character name only, no .DBF extent) RX2_Line2_File RX A2 L2 FNM
ID of Line 2 on the Diversity Receiver (RX2) antenna in the library file RX2_Line2_ID RX ANT2LINE2TID
