Longley-Rice Variability Effects

Q:  How do the Longley-Rice Variability values affect the field strength predictions?

A:  The variability factors in the Longley-Rice model adjust the computed field strength values based on the length of the path, antenna heights, terrain roughness, and other factors.

The Longley-Rice model is discussed in detail in Notes on Longley-Rice Propagation.  In addition, the general effects of variability are discussed in Longley-Rice Variability Values.

It is important to consider the effects of different variability settings in the Longley-Rice calculations.  For example, you can use different settings to determine the “best case” and “worst case” coverage areas for your installation.

The following sample paths illustrate the kind of differences in predicted field strength values for 50%, 90%, and 99.9% variabilities for time and situation variability settings.  (Most TAP Longley-Rice calculations use the Variability Mode setting of “11” which ignores location variability.)

These sample paths are intended as illustrations only.  You can use the TAP Single Point Field function and make similar changes in the variability values to see the effect on paths that are typical in your installation.

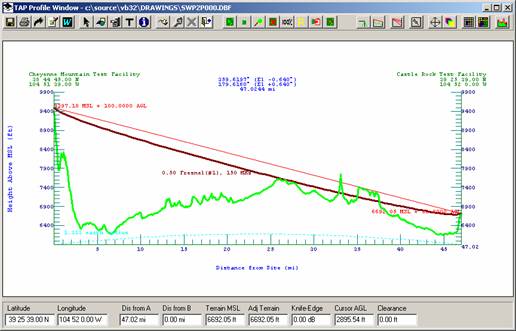

Sample Path 1



Cheyenne Mtn  to Castle Rock

Cheyenne Mountain Test Facility: 38 44 45.00 N 104 51 39.00 W

Frequency: 150.00000 MHz  ERP: 100.0000 W

Castle Rock Test Facility: 39 25 39.00 N 104 52 0.00 W

Path: 47.0244 mi;  Azimuth 359.6197

Step: 0.1000 mi;  Effective Earth Curvature: 1.333

Topo Data:

Interpolation:  FCC Interpolation (4 points)

TX Site MSL adjusted to: 9397.18 ft

TX Ant: 9497.18ft MSL (Site 9397.18ft + 100.00ftAGL)

RX Site MSL adjusted to: 6692.05 ft

RX Ant: 6722.05ft MSL (Site 6692.05ft + 30.00ftAGL)

Azimuth: 359.620

TX Antenna Gain:  Az 0.00 dB;  El 0.00 dB (angle = -0.640)

Free Space Field: (100.000 W   @ 47.025 mi)    59.34 dBu

Free Space Loss: 109.27 dB (between dipoles)

Additional Estimated transmission loss :13.94 dB

Single-horizon path Diffraction

LR Mode:  11

                Individual; No Location Var

Polarization: V

Surface Refrac: 0.00(300.90)

Permittivity: 15.00  Conductivity:  0.0050

Climate: Continental Temperate

Path terrain Delta-H: 1226.73 ft

Effective antenna heights: 2946.99 ft                729.54 ft



50.0% Time

90.0% Time

99.9% Time

50.0% Situation

45.4

44.2

42.6

90.0% Situation

36.4

35.2

33.5

99.9% Situation

23.7

22.5

20.8

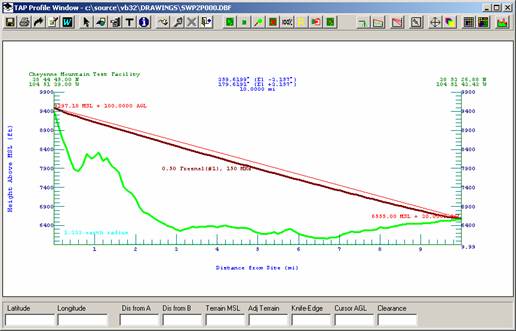

Sample Path 2



Cheyenne Mountain Test Facility: 38 44 45.00 N 104 51 39.00 W

Frequency: 150.00000 MHz  ERP: 100.0000 W

Arbitrary Point 10mi, 359T: 38 53 26.88 N 104 51 43.43 W

Path: 10.0000 mi;  Azimuth 359.6196

Step: 0.1000 mi;  Effective Earth Curvature: 1.333

Topo Data:

Interpolation:  FCC Interpolation (4 points)

TX Site MSL adjusted to: 9397.18 ft

TX Ant: 9497.18ft MSL (Site 9397.18ft + 100.00ftAGL)

RX Site MSL adjusted to: 6554.76 ft

RX Ant: 6584.76ft MSL (Site 6554.76ft + 30.00ftAGL)

Azimuth: 359.620

TX Antenna Gain:  Az 0.00 dB;  El 0.00 dB (angle = -3.157)

Free Space Field: (100.000 W   @ 10.000 mi)    72.79 dBu

Free Space Loss: 95.82 dB (between dipoles)

Additional Estimated transmission loss :0.00 dB

Line-of-sight path

LR Mode:  11

                Individual; No Location Var

Polarization: V

Surface Refrac: 0.00(300.90)

Permittivity: 15.00  Conductivity:  0.0050

Climate: Continental Temperate

Path terrain Delta-H: 2915.77 ft

Effective antenna heights: 2076.75 ft                716.25 ft



50.0% Time

90.0% Time

99.9% Time

50.0% Situation

72.8

72.7

72.6

90.0% Situation

62.9

62.8

62.7

99.9% Situation

48.9

48.8

48.7

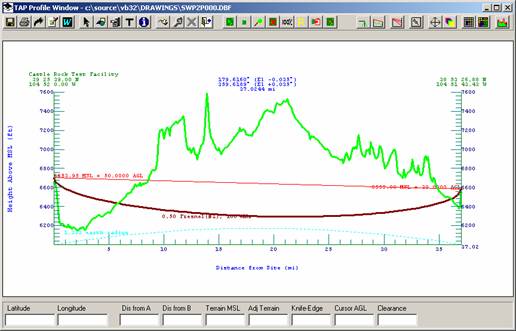

Sample Path 3



Castle Rock Test Facility: 39 25 39.00 N 104 52 0.00 W

Frequency: 150.00000 MHz  ERP: 100.0000 W

Arbitrary Point 10mi, 359T: 38 53 26.88 N 104 51 43.43 W

Path: 37.0244 mi;  Azimuth 179.6160

Step: 0.1000 mi;  Effective Earth Curvature: 1.333

Topo Data:

Interpolation:  FCC Interpolation (4 points)

TX Site MSL adjusted to: 6653.95 ft

TX Ant: 6703.95ft MSL (Site 6653.95ft + 50.00ftAGL)

RX Site MSL adjusted to: 6555.95 ft

RX Ant: 6585.95ft MSL (Site 6555.95ft + 30.00ftAGL)

Azimuth: 179.616

TX Antenna Gain:  Az 0.00 dB;  El 0.00 dB (angle = -0.035)

Free Space Field: (100.000 W   @ 37.024 mi)    61.42 dBu

Free Space Loss: 107.19 dB (between dipoles)

Additional Estimated transmission loss :61.40 dB

Double-horizon path Diffraction

LR Mode:  11

                Individual; No Location Var

Polarization: V

Surface Refrac: 0.00(300.90)

Permittivity: 15.00  Conductivity:  0.0050

Climate: Continental Temperate

Path terrain Delta-H: 1141.40 ft

Effective antenna heights: 739.31 ft  194.07 ft



50.0% Time

90.0% Time

99.9% Time

50.0% Situation

25.6

23.8

21.3

90.0% Situation

16.9

15.1

12.4

99.9% Situation

4.6

2.7

0.02

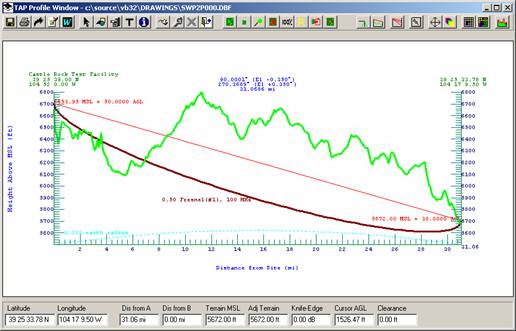

Sample Path 4



Castle Rock Test Facility: 39 25 39.00 N 104 52 0.00 W

Frequency: 100.00000 MHz  ERP: 100.0000 W

Test site: 39 25 33.78 N 104 17 9.50 W

Path: 31.0686 mi;  Azimuth 90.0001

Step: 0.1000 km;  Effective Earth Curvature: 1.333

Topo Data:  30-second

Interpolation:  FCC Interpolation (4 points)

Longley-Rice: LR 50 50

TX Site MSL adjusted to: 6653.95 ft

TX Ant: 6703.95ft MSL (Site 6653.95ft + 50.00ftAGL)

RX Site MSL adjusted to: 5672.44 ft

RX Ant: 5970.44ft MSL (Site 5672.44ft + 298.00ftAGL)

Azimuth: 90.000

TX Antenna Gain:  Az 0.00 dB;  El 0.00 dB (angle = -0.256)

Free Space Field: (100.000 W   @ 31.069 mi)    62.94 dBu

Free Space Loss: 102.15 dB (between dipoles)

Additional Estimated transmission loss :28.50 dB

Double-horizon path Diffraction

LR Mode:  11

                Individual; No Location Var

Polarization: V

Surface Refrac: 0.00(300.90)

Permittivity: 15.00  Conductivity:  0.0050

Climate: Continental Temperate

Confidence: 50.00  Reliability: 50.00

Path terrain Delta-H: 728.94 ft

Effective antenna heights: 359.98 ft  298.00 ft



50.0% Time

90.0% Time

99.9% Time

50.0% Situation

34.4

33.1

31.3

90.0% Situation

25.5

24.2

22.3

99.9% Situation

12.98

11.7

9.7

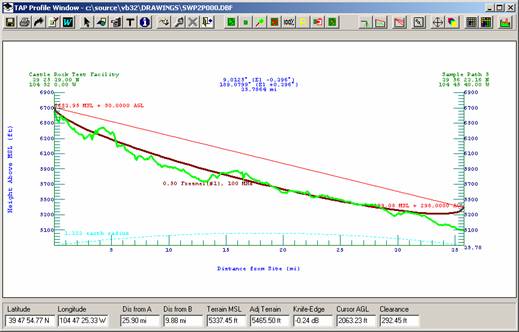

Sample Path 5



Castle Rock Test Facility: 39 25 39.00 N 104 52 0.00 W

Frequency: 100.00000 MHz  ERP: 100.0000 W

Target site from map: 39 56 23.16 N 104 45 40.00 W

Path: 35.7864 mi;  Azimuth 9.0125

Step: 0.1000 km;  Effective Earth Curvature: 1.333

Topo Data:  30-second

Interpolation:  FCC Interpolation (4 points)

Longley-Rice: LR 50 50

TX Site MSL adjusted to: 6653.95 ft

TX Ant: 6703.95ft MSL (Site 6653.95ft + 50.00ftAGL)

RX Site MSL adjusted to: 5099.08 ft

RX Ant: 5397.08ft MSL (Site 5099.08ft + 298.00ftAGL)

Azimuth: 9.012

TX Antenna Gain:  Az 0.00 dB;  El 0.00 dB (angle = -0.396)

Free Space Field: (100.000 W   @ 35.786 mi)    61.71 dBu

Free Space Loss: 103.37 dB (between dipoles)

Additional Estimated transmission loss :9.97 dB

Line-of-sight path

LR Mode:  11

                Individual; No Location Var

Polarization: V

Surface Refrac: 0.00(300.90)

Permittivity: 15.00  Conductivity:  0.0050

Climate: Continental Temperate

Confidence: 50.00  Reliability: 50.00

Path terrain Delta-H: 360.77 ft

Effective antenna heights: 408.37 ft  424.18 ft



50.0% Time

90.0% Time

99.9% Time

50.0% Situation

51.7

50.2

48.2

90.0% Situation

42.9

41.4

39.21

99.9% Situation

30.5

28.9

26.7
