TAP TalkBack Population Count

Q: Can I use my TAP TalkBack study to do a population count in the coverage area?

A: For TAP 5.0.1030 systems with a Maintenance Subscription date of November 30, 2004, or later, TAP Coverage studies can be used to perform population counts in SoftWright’s HDMapper program.

Note that all values shown in this article are for illustration purposes only. It is important that you use good engineering judgment to determine the values that are appropriate for your equipment and specific application.

(Population counts are one common use of the more general Data Summation function available in HDMapper. Population counts are provided as a separate function as described in this FAQ.)

You must first setup and run the Area Coverage studies, compute the TalkBack shapefile, and plot the coverage area with HDMapper. The coverage study must be run with the tile points plotted as “Filled Tiles”. Studies written as “Symbol Points” cannot be used for population counts.

You should be sure the population layer(s) you want to use are included in the map. The population layers can be included automatically with the “Set Default Layers” function, or you can add layers to the map manually.

This FAQ describes Coverage Population Counts for TalkBack coverage studies. For population counts using Tile Coverage areas, see the article on TAP Tile Coverage Population Counts. For population counts using Contour coverage areas, see the article on TAP Contour Coverage Population Counts.

Population Count Setup

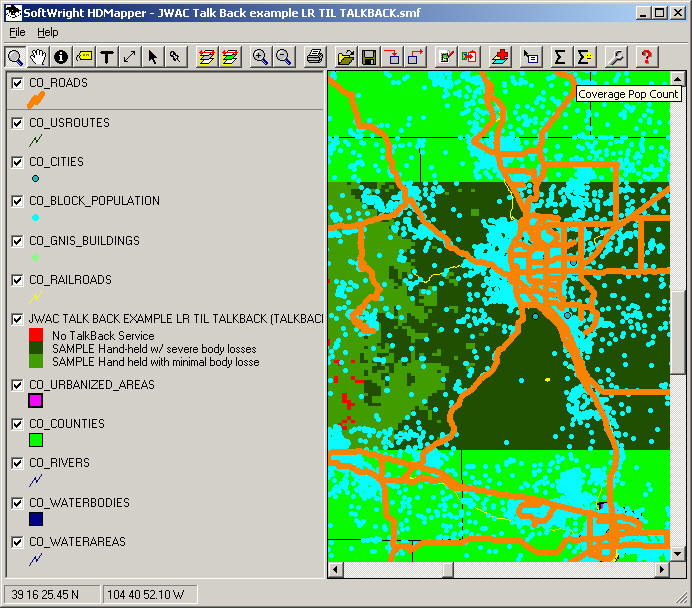

When the map includes the TalkBack and population layers you want to use, click the “Coverage Pop Count” button:

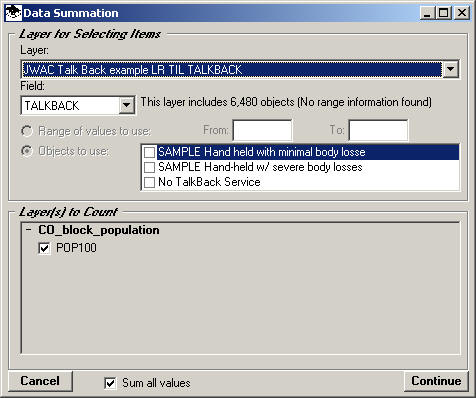

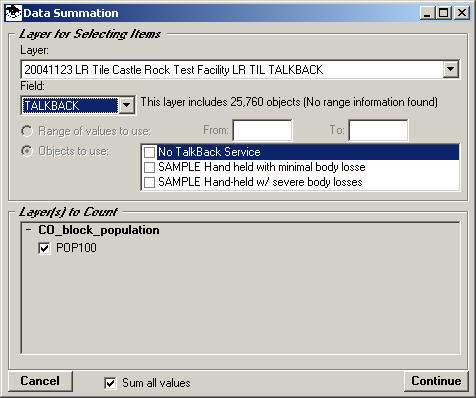

The Data Summation form will be displayed:

Layer to Use

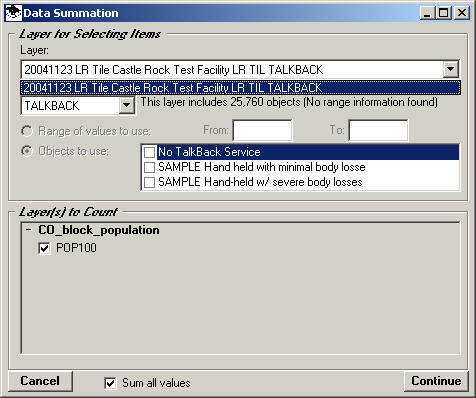

First, use the pulldown “Layer” list to choose the layer you want to use as the area to count. In this example, the map contains only a single TalkBack coverage layer:

(Note in the more general Data Summation function you can select any polygon area layer.)

Data Field to Use

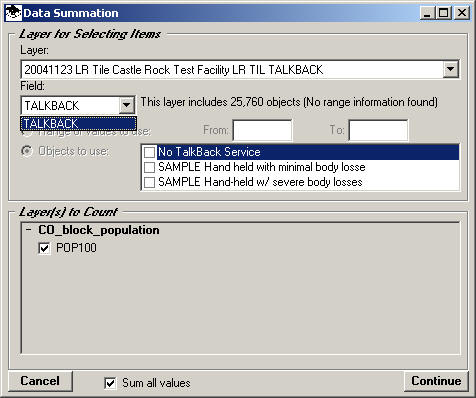

Next, select the data value field to use. For TalkBack coverage studies, the only field available for coverage population counts is the “TALKBACK” indicating the talkback service for each tile location:

Aggregate coverage studies typically have four or more unique values in the COVSOURCE field:

□ No TalkBack Service This category indicates that none of the individual mobile units provide talkback service.

□ The remaining categories list the Mobile Facility Description for the individual mobile records indicating if the unit provides talkback service from each location.

(Note in the more general Data Summation function you can select any data field in the layer.)

Data Field Values

TalkBack coverage layers contain unique values for each location as described above. Therefore there are no range values to select, and the ‘From’ and ‘To’ values are not used.

Select the values to include in the counting area.

For a talkback study (as in this example), the values determine the tile areas to be used for the population count. When you select the values, only the population points that are included in tile areas having one of those values are counted.

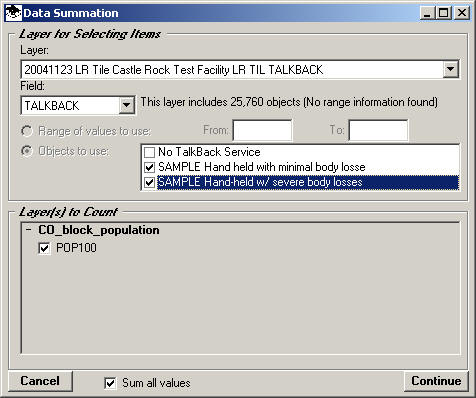

For example, in a talkback coverage study you could select all of the Mobile types as shown above. This population count would give you the total population in the talkback area defined by these studies. As an alternative you could select only the “No TalkBack Service” category to get the population count for the area where no talkback service is possible with the specified mobile units and base station configuration.

This feature gives you great flexibility in selecting the value(s) in the TalkBack study to use for the population count.

(Remember that these values are for illustration only.)

Layers to Count

Determine the layer(s) you want to count. For Coverage Population counts, the layers listed only included those layers that are recognized as containing population information, such as the U.S. Census Block Centroid layers.

(Note in the more general Data Summation function all “point” type layers are displayed and you can select data fields in any of the layers.)

Fields to Count

Select the data field(s) you want to count in each layer by marking the checkbox for that data field. For Coverage Population counts, the fields listed only include those fields that are recognized as containing population information, such as the “POP100” field in the Block Centroid files.

(Note in the more general Data Summation function all fields in the “point” type layers are displayed and you can select any data fields in any of the layers.)

Sum All Values

If more than one data field is to be counted you have the option to sum all the fields by marking the “Sum all values” checkbox.

For population counts, only population fields are available for counting, so summing all the values is a useful function

In the more general Data Summation function, a variety of fields are available and may be selected and you may choose not to sum the “apples and oranges” totals for each field.

Population Count

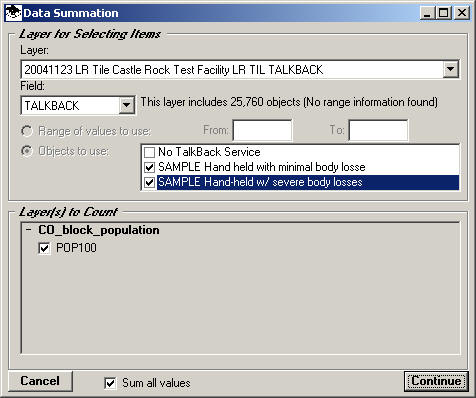

When the information on the Data Summation form is set up as desired, click the Continue button.

The program will begin the population count, and an information form will be displayed:

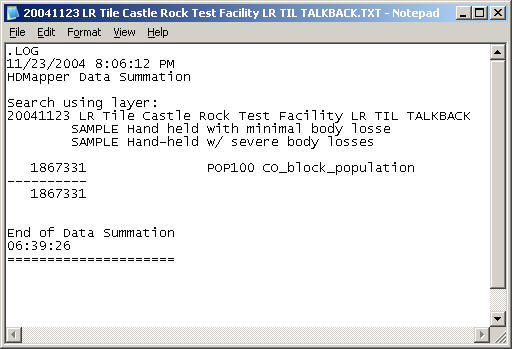

When the count is completed, the results will be displayed in Notepad:

The information includes he name of the selection layer, the range information, and the population count for each population layer.

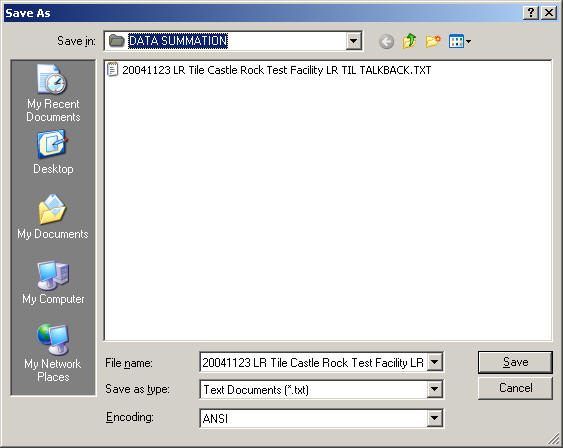

The information is written to an ASCII file in the same folder as the selection layer. The file is written in a sub folder named “DATA SUMMATION”:

The file has the same name as the shapefile for the selection layer, with the TXT file extent.

You can save the file to a different name, or copy and paste the information into other documents, such as Microsoft Word.

If multiple coverage population counts are done using the same selection layer shapefile, the information will be appended to this file.
