Path Profile JPG Export
Q: How can I export a copy of my path profile into a JPG graphic file?
A: With TAP6.0.2249 or later and a Maintenance Subscription date of July 31, 2008, or later, you can export the profile from the File-Export menu in HDPath.
Note that all values in this example are for demonstration purposes only. You should determine appropriate settings for your application.

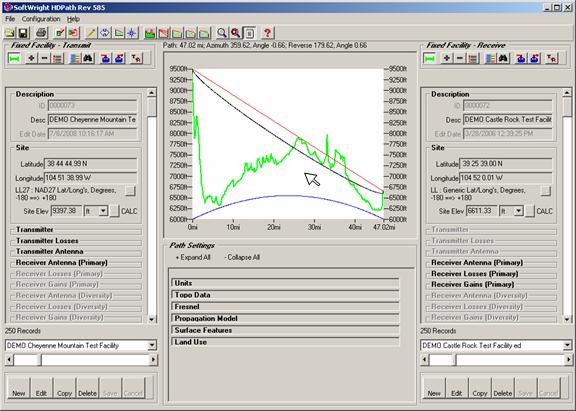

For example, suppose you have a path profile drawn in HDPath™:

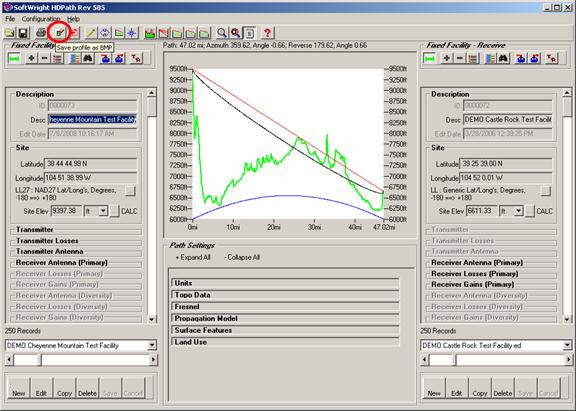

Earlier versions of HDPath had the option of saving just the profile graphic to a BMP file using the Bitmap button:

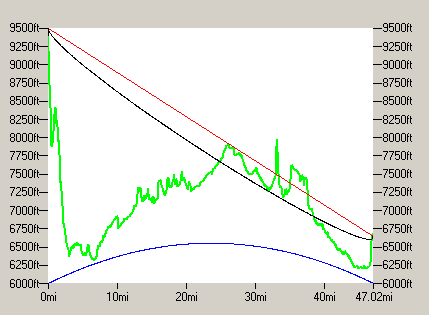

This function saves just the profile graphic:
(The button to the right of the BMP button copies the same graphic to the Windows Clipboard.)

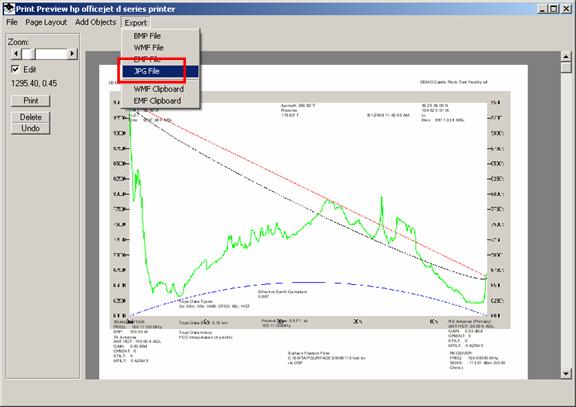

You could also save the graphic along with other labels and information using the Print Preview function.
This function saves the complete graphic and labels:

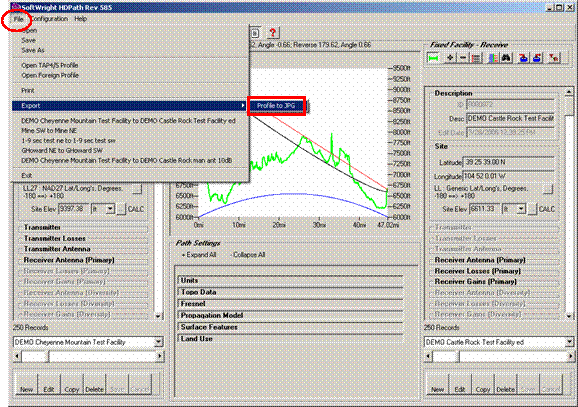

The same function now is available directly from the HDPath File menu:

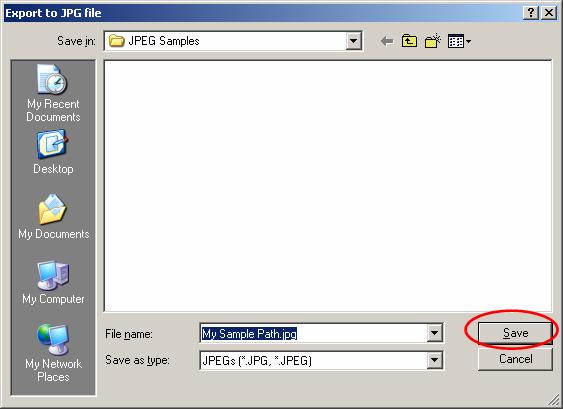

You will be prompted for the location and name of the JPG file you want to save:
The graphic, including the labels, will be saved to that file, using the current setting for the Print Preview template. If you want to change the settings, click the Print button and select or create a new template and edit the settings you want first, and then use the Profile Export menu to save the image with those template settings.
 |
Copyright 2008 by SoftWright LLC
