Uninstalling TAP6

Q:  When I move TAP to a new machine, how do I uninstall it from the old machine?

A:  The Windows Control Panel “Add or Remove Programs” function will remove the TAP software.

Note that all values in this example are for demonstration purposes only.  You should determine appropriate settings for your application.

If you have any information that you want to save (such as Fixed Facility database, Area Coverage Studies or coverage maps you have created) on the machine where TAP is being removed, refer to the Moving TAP to a New Machine article before uninstalling TAP.

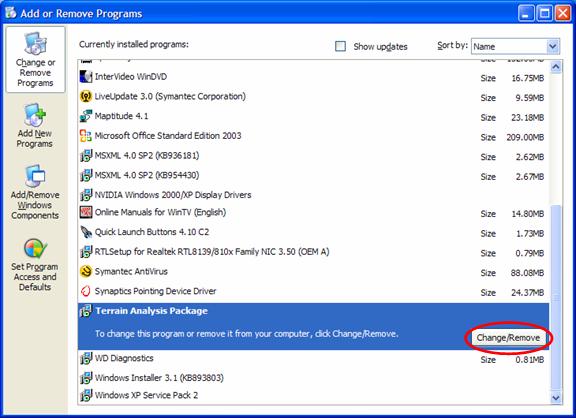

From the Windows Control Panel, select the “Add or Remove Programs” option.  When the Add or Remove Programs form is displayed, scroll down to find the “Terrain Analysis Package” entry.  Click that entry to highlight it, and click the “Change/Remove” button:

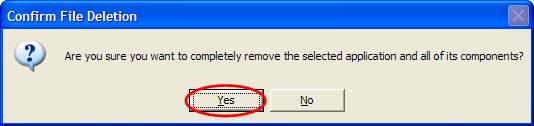

On the confirmation form, click Yes:

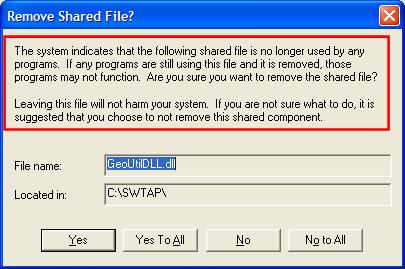

The uninstall program will display files that may be shared among different programs:

As the Windows message explains, the uninstall program has determined that the files (listed one at a time on this form – see below) are used only by TAP and not other applications, so removing the file should not have any affect on other applications installed on your computer.  However, if any of the files actually are used by other components, removing them is not recommended.  While the Windows “Add or Remove Programs” function is usually accurate, if you have any doubts you should follow the suggestion on the message and choose not to remove the shared component.

The files typically removed during the un-install process for TAP are listed below.

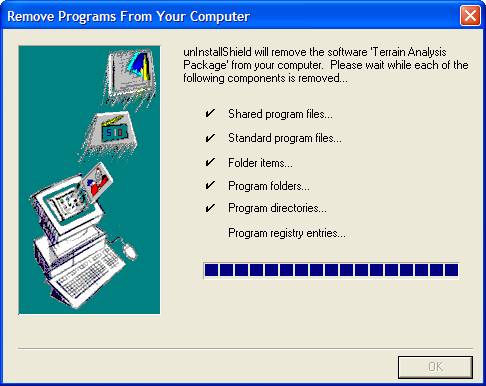

The progress of the un-install will be shown:

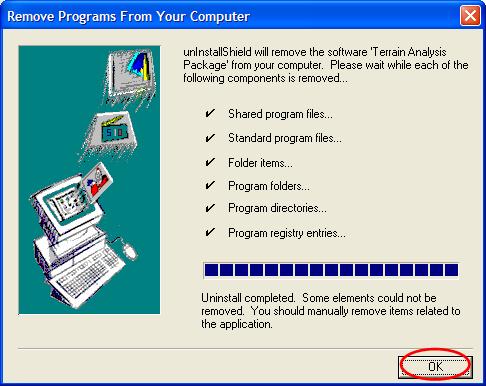

When the process is completed, click the OK button.

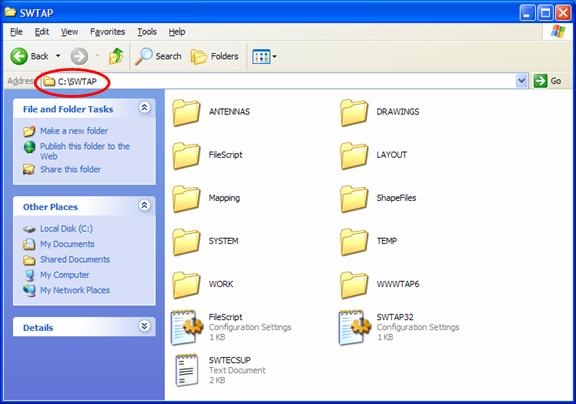

The “Add or Remove Programs” function removes the application and component files, but several folders and database files created by TAP may be left on the machine in the folder where TAP was initially installed.

You can delete all these files and folders and remove the folder where TAP was installed (usually C:\SWTAP by default).



The following files will typically be displayed for the “Remove Shared File?” dialog box. Some of these files may not be present depending on the TAP modules or components you have installed:

Files in the TAP installation folder
(C:\SWTAP by default)

Files in the C:\WINDOWS\SYSTEM32 folder

Files in the C:\Program Files\Common  Files folder (or sub folders)

GeoUtilDLL.dll

TXRXControl.ocx

VBPrnDlg.dll

MapLegend.ocx

SettingDisplay.ocx

SettingInfo.ocx

SettingUnique.ocx

SWBranch.ocx

SHPLayerDef.ocx

SmartControls.ocx

SmartLookups.ocx

SmartElevation.ocx

FlexFrame.ocx

SWLandUseDLL.dll

SmartCovSet.ocx

SmartFAC.ocx

SWLicenseDLL.dll

SmartCovArea.ocx

SmartMOB.ocx

SmartArea.ocx

SmartSHPSelect.ocx

FileBrowserOCX.ocx

SWHDFACMOBLook.dll

SWElvPathDLL.dll

SmartControlsTMR.ocx

SWHDTemplateDLL.dll

mbiProgressFormsCOM.dll

BoundaryObjectCom.dll

SWShapeUtilsCOM.dll

SWShapeToArrayCOM.dll

filescriptCOM.dll

TXRXChannel.dll

SmartKnob.ocx

SpectrumAnalyzer.ocx

SmartGrid.ocx

SWLOCL32.exe

swtmpl32.Exe

SWALLO32.exe

SWFACL32.exe

SWLNKB32.exe

SWCOVS32.exe

swimod32.exe

SWPTHL32.exe

SWCOVR32.exe

SWPGL32.exe

sweds32.exe



oc30.dll

COMCTL32.OCX

COMCT232.OCX

Dao350.dll

Tabctl32.ocx

RICHTX32.OCX

Crystl32.ocx

VSVIEW32.OCX

Vsocx32.OCX

csmete32.ocx

cslist32.ocx

btn32x10.ocx

dwvstp32.ocx

Dzstat32.ocx

Dzocx32.ocx

Duzocx32.ocx

TurboDXF32.ocx

TurboDXF.dll

xarray32.ocx

tdbg5.ocx

tdbg8.ocx

todgub8.dll

xadb8.ocx

todg8.ocx

vp3270.ocx

DBCOCX32.OCX

THREED32.OCX

U2fxls.dll

U2dmapi.dll

U2fcr.dll

U2fdif.dll

U2fhtml.dll

U2frec.dll

U2frtf.dll

U2fsepv.dll

U2ftext.dll

U2fwks.dll

U2fwordw.dll

U2ddisk.dll

P2bbnd.dll

Crxlat32.dll

P2bdao.dll

Pdbdao.dll

Pg32.dll

Co2c40en.dll

Implode.dll

Crpe32.dll

DZIP32.DLL

DUNZIP32.DLL

APIGID32.DLL

DZPROG32.EXE

Imgdll.dll

DBCGTF32.dll

dbcjpg32.dll

dbcbmpdc.dll

Dbcdbf32.dll

DBCLST32.DLL

DBCTIF32.DLL

DBCDIB32.DLL

DBCGDI32.DLL

DBCDWG32.DLL

DBCDXD32.DLL

DBCDLL32.DLL

Dbcmem32.dll

Dbcmdb32.dll

dbcmdb2000.dll

Dbc32.lic

dao2535.tlb

Stkit432.dll

Dao3032.dll

tdbgpp8.dll



MOLT20.ocx

ShapeLT20.dll

MOMrSIDLT.dll

AIImageLT20.dll

CadLT20.dll

CoverageLT20.dll

AFLT20.dll

pe.dll

sg.dll

CADe.dll

CADpi.dll

libtiff.dll
