TAP6 Surface Feature Import Format

Q:  What file formats can I import into TAP6 Surface Feature files?

A:  With TAP6.0.2150 or later and a Maintenance Subscription date of February28, 2007, or later, you can import Surface Feature files into TAP6.

The TAP Surface Feature function is used to add objects that represent additional elevation (above the topographic data values) on the surface of the ground, such as buildings, vegetation, clutter, etc.

The following table lists the fields that can be imported into the TAP Surface Feature files:

The imported file can be

·         A dBase (.DBF) file using the "Field Name" column values in the table as the field names in the DBF file

·         An Excel spreadsheet that contains the "Field Name" column values as the first row in each column of the spreadsheet

·         A comma-delimited ASCII file containing the "Field Name" column values, separated by commas, as the first line in the file

The import function uses the Field Names from the table below to map the imported fields to the TAP database, so the order of the fields in the file (DBF, Excel, or ASCII) is not important.

Also, since the import function uses the Field Names, it is not necessary to import all of the fields.  Missing fields will be ignored.  Naturally, several fields are related (such as the height and the height units) and should either both be included or both be omitted.  Note also that certain fields are essential to the proper operation of the Surface Feature function in TAP, as noted below.

The following fields are required for normal use of the TAP Surface Feature files.  Importing files which do not contain valid entries for all these fields will cause unpredictable operation when you use the Surface Feature files in TAP:

Field Name

Field Header

Data Type

Total Field Width

Field Decimal Places

Comments

OBS_DESC

Description

STRING

40



Your description of the object

OBS_LAT

Latitude

DOUBLE

14

9

Center point latitude

OBS_LON

Longitude

DOUBLE

14

9

Center point longitude

OBS_DATUM

Datum

STRING

13



Coordinate Datum:

NAD 27
NAD 83
WGS 84
No Adjustment

OBS_HGT

Height

DOUBLE

10

4

Height of the object

OBS_HGTUN



STRING

2



Height units:

ft
m

OBS_RADIUS

Radius

DOUBLE

10

4

Radius of object

OBS_RADUN



STRING

2



Radius units:

ft
m
mi
km
nm

OBS_TYPE

Type

STRING

1



Type of object:

V – vegetation
C – clutter
K - obstruction

The following fields are also included in the TAP Surface Feature format and are included here for the sake of completeness.  These fields are not normally used in the import process:

Field Name

Field Header

Data Type

Total Field Width

Field Decimal Places

Comments

OBS_ID

ID

STRING

7



Unique ID assigned by the program.  If this field is present in the imported file it is ignored and TAP assigns its own ID.

OBS_BASE

Base Elevation

DOUBLE

10

4

Value used to force the base elevation to a value and ignore topographic elevation data.  Not usually used in current versions of TAP.

OBS_BASEUN



STRING

2



Base units

OBS_CALC



STRING

40



Obsolete field not used.

OBS_LULC



STRING

10



Obsolete field not used.

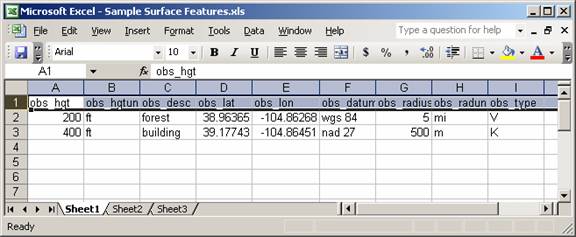

For example, you can create an Excel spreadsheet with the required field names and add values:

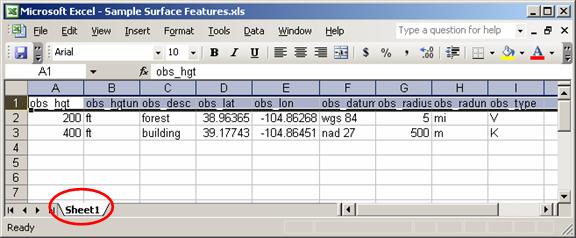

The TAP Surface Feature import assumes the data will be in “Sheet1:”

If the Excel sheet has a different name, you can right-click on the tab to rename it to Sheet1.

If you are using an Excel file with different header names (or no header names) you can save the file in Excel to a different name (using the Edit-SaveAs menu), then use the copy to change the headings to match the TAP import requirements.

Be sure the coordinates are in decimal degrees.  If the coordinates are in a different format (such as degrees, minutes and seconds) you must convert to decimal degrees.  You may be able to do this with an Excel macro or other function.
