HDMapper™ Latitude-Longitude Tics
Q: How can I add tic marks to show latitude and longitude marks on my HDMapper drawing?
A: For TAP 5.0.1038 systems with a Maintenance Subscription date of December 31, 2004, or later, you can add tic marks to show the latitude and longitude values on the map.
For example, suppose you have a coverage map drawn with HDMapper:

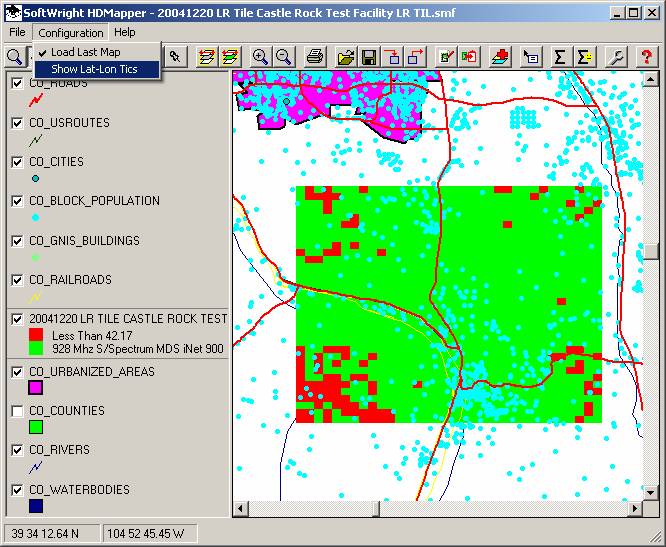

To add the tic marks, click the Configuration menu and click the Show Lat-Lon Tics option:

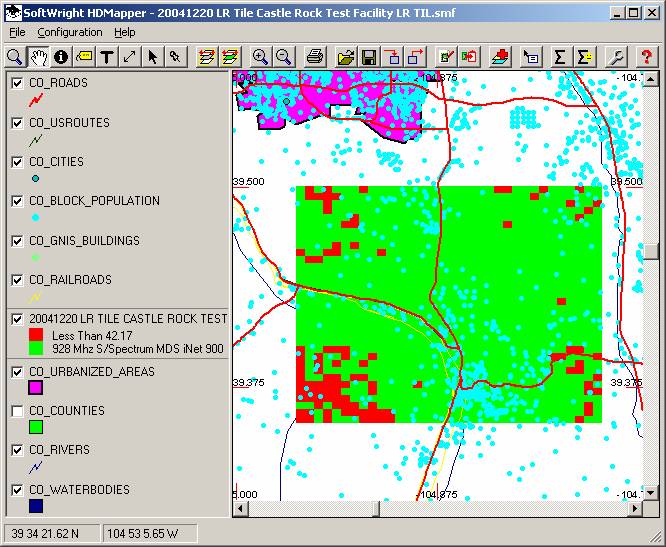

The tic marks will be added to the map:
You can remove the tic marks by selecting the Configuration menu and clicking the Show Lat-Lon Tics option to remove the check mark.
![]() ![]() ![]() ![]() |
