Composite Study Multiple Selection
Q: How can I select several component studies to include in a Composite Coverage study?
A: With TAP6.0.2202 or later and a Maintenance Subscription date of November 30, 2007, or later, you can select a range of studies from the list.
Note that all values in this example are for demonstration purposes only. You should determine appropriate settings for your application.
The TAP Composite Study function enables you to combine the computed results of multiple individual studies (the “component studies”) to show the combined results, such as the best server for an area, interference between facilities, etc.

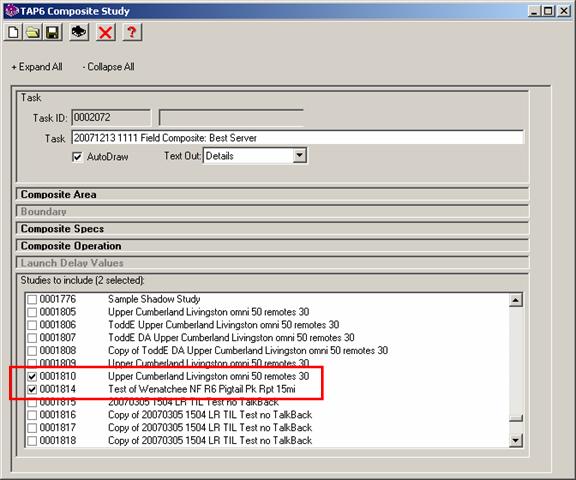

The Composite Study interface includes a list of studies you can select by clicking the box by each of the desired studies:
You can check or un-check the boxes by clicking each box.

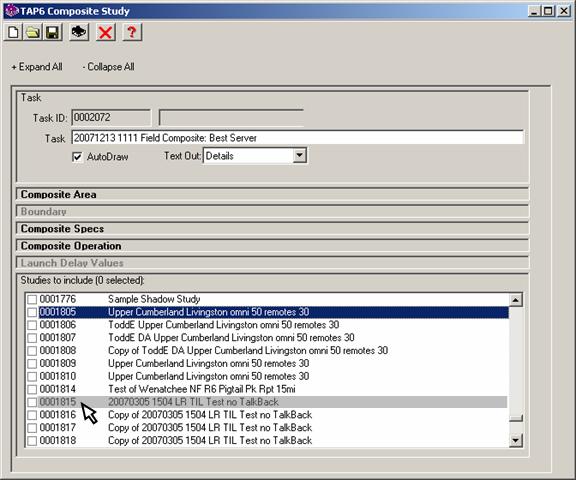

The multiple-selection option enables you to toggle a range of selections. Click one item in the list to highlight it, then hold down the Shift key on the keyboard and click another item:

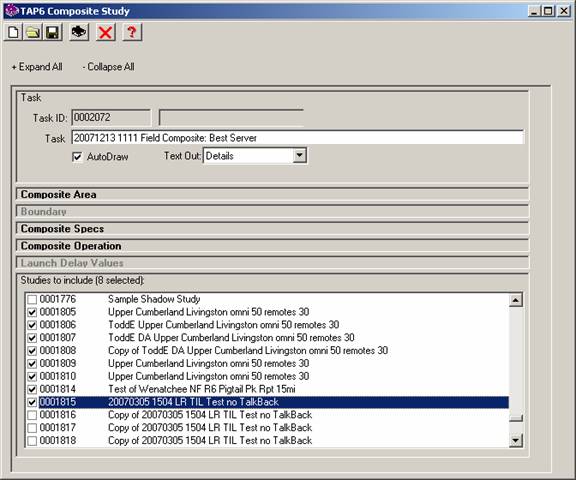

The range of items in the list will be toggled (unchecked items will be checked, checked items will be un-checked):
![]() ![]() ![]() ![]() |
