Map Projections

Q: How do I select or setup a map projection in TAP?

A: Plotting the surface of the (almost) spherical earth on a flat page (or screen) requires the use of a map projection. Many different map projections have been used over the years in an attempt to convey information.

Think of a map projection as taking the rubber surface of a globe and forcing it to fit on a flat page, trying to distort the image as little as possible as the rubber sheet is stretched and pushed to flatten it out.

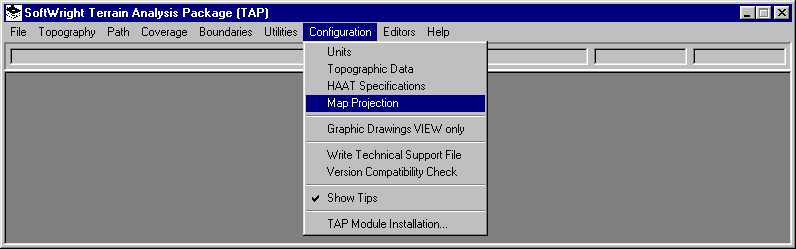

From the TAP menu, click on the Configuration menu and select Map Projection:

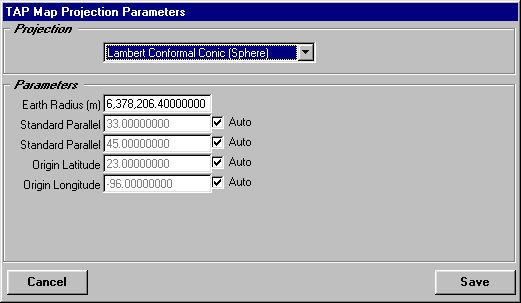

The TAP Map Projection Parameters form is displayed:

Use your left mouse to select a map projection from the list of projections currently available in TAP. When you select a projection, the applicable parameters for that projection and their current values will be displayed.

The most commonly used projection for North America is the Lambert Conformal Conic, often used for maps of entire counties. This projection is available in TAP.

For additional information on map projections and their parameters, see Map Projections, A Working Manual, USGS Professional Paper 1395.

Parameters

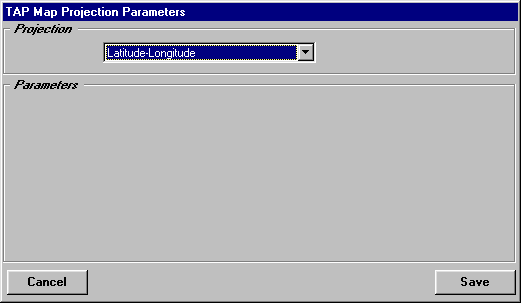

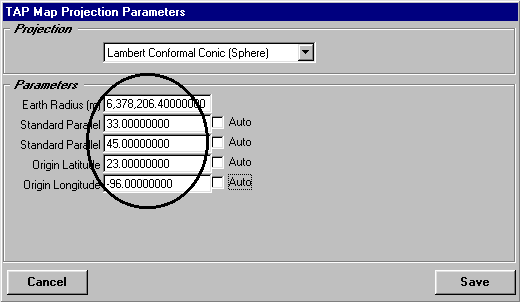

Because of basic differences between map projections, the particular parameters displayed will depend on the projection. For example, the Latitude-Longitude projection simply plots longitude and latitude values as X and Y, respectively, and requires no parameters, while other projections may require up to 15 parameters:

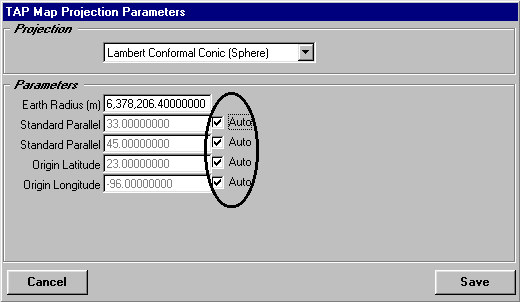

Several parameters for a given projection may include a check box option labeled "Auto" to allow each plot to be localized. For example, the Lambert Conformal Conic projection typically uses parameter values optimized for the entire continental United States, including Standard Parallels and Origin values appropriate for the entire country. The projection can be used with minimum distortions of scale and shapes for the entire U.S.

However, if you are plotting a smaller area, such as a single state or even a few counties with a coverage area, the accuracy of the projection for that localized area generally can be improved by checking the Auto option for the parameters for the projection. The Auto option computes appropriate parameters (such as Standard Parallels and Origin in the case of Lambert Conformal Conic projections) based on the specific area to be plotted.

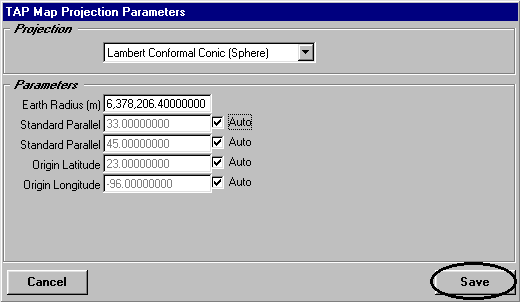

After setting all the projection parameters to the values you want, click the Save button to save the changes.

The program will use those settings for all subsequent map plots. (Note that you cannot change the projection or parameters of a map that is currently displayed by TAP. You can close the map, change the parameters and save them, then redraw the map.)

As an example, the following plots show the state of Colorado using the Latitude-Longitude projection, the US Centered Lambert Conformal Conic projection, and the Lambert Conformal Conic with the "Auto" option selected for the parameters:

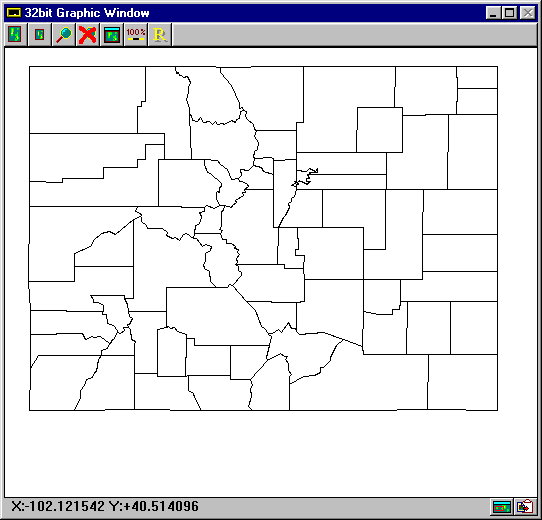

Latitude-Longitude:

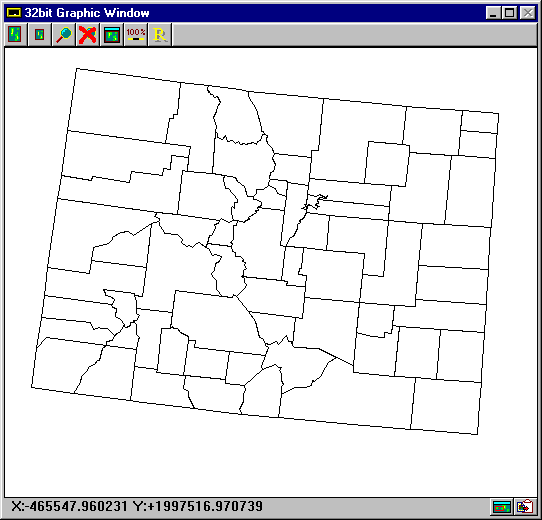

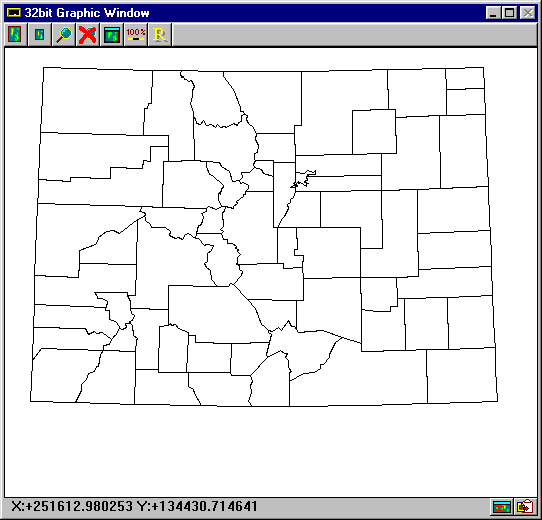

US Centered Lambert Conformal Conic

Lambert Conformal Conic "Auto"
