HDPath™ Graphic Labels Font Size
Q: How can I adjust the size of the elevation and distance labels in the profile graphic in HDPath?
A: With TAP6.0.2338 or later and a Maintenance Subscription date of April 30, 2010, or later, you can set the desired font size.
Note that all values in this example are for demonstration purposes only. You should determine appropriate settings for your application.

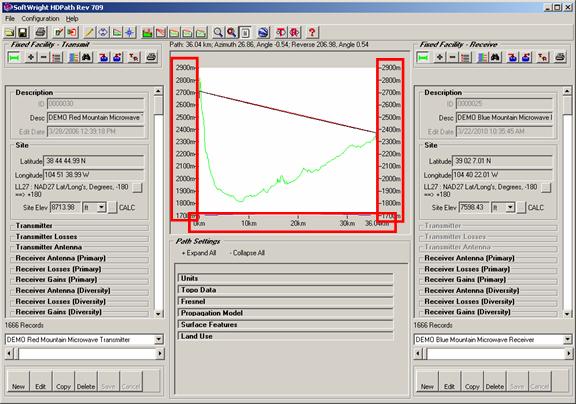

HDPath displays the elevation and distance values along the edges of the profile:

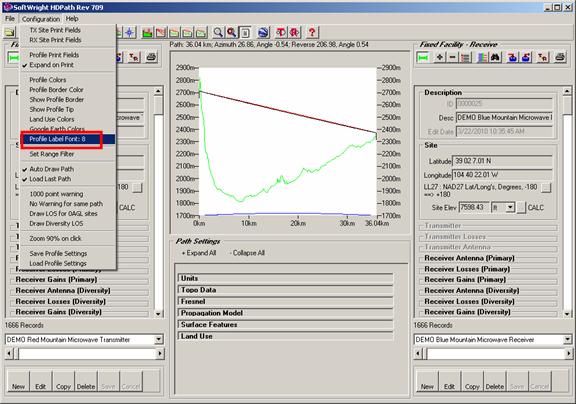

To change the font size for the labels, click the “Configuration” menu, then select “Profile Label Font” (the current font size is displayed in the menu):

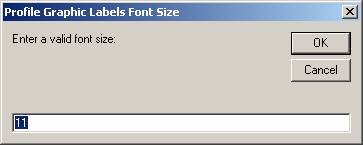

Enter the desired font size:

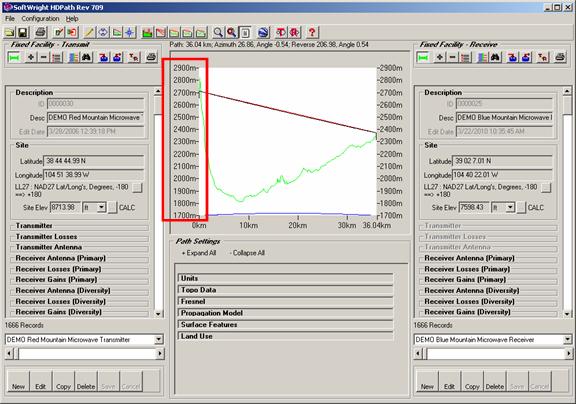

The profile will be redrawn with the new label size:
 |
